LED Monocular Microscope

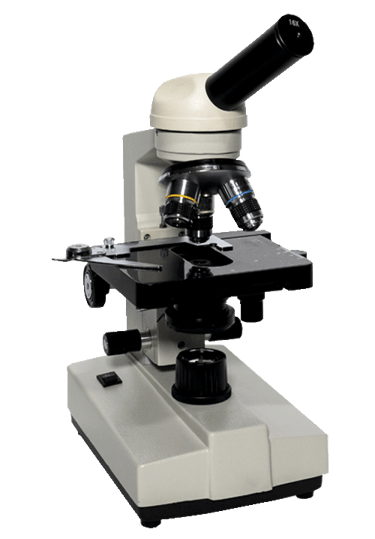

Junior LED Monocular Microscope

Product Code : BIMC-01A-A

BIMC-01A-A is an entry-level microscope that will last for many years

Features:

• Eyepiece WF10x & WF16x

• Achromatic objective 4x, 10x, 40x

• Triple nosepiece

• Build-in double layers mechanical stage 140 x 140mm

• N.A. 1.25 condenser with iris diaphragm

• Separated Coarse and Fine focusing adjustment

• Working Distance 2-195mm

• Illuminator LED (Cold Light) (Rechargable)

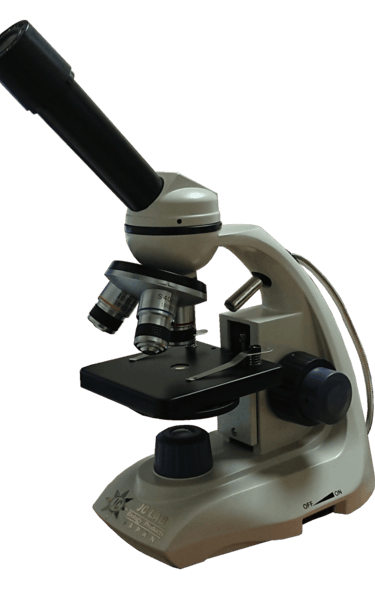

Duo Microscope, upper and lower LED (junior)

Product Code : BIMC-01SA

Features:

• Eyepiece WF10x

• Achromatic objective 4x, 10x, 40x

• Triple nosepiece

• Plain Stage with Slide Clips 95×95mm

• NA 0.65 with Turntable Diaphragm

• Coaxial coarse and fine adjustment (20mm)

• Up and down LED illumination, brightness is adjustable, and it can be equipped with 3 sections of AA batteries.

The BIMC-01SA Duo Microscope is our most popular microscope in the JC Lab series! Designed with two light sources, this microscope can magnify both slides and solid objects. View slides, coins, plants, stamps, insects, jewelry, and more! No longer do you need one basic biological microscope to look at specimens on a slide (light shines up from under the slide and through the tissue) and a traditional stereo or dissecting microscope to view solid objects (light shines down onto the specimen to be observed). Instead, equipped with dual lighting, the Duo Scope allows for both applications!

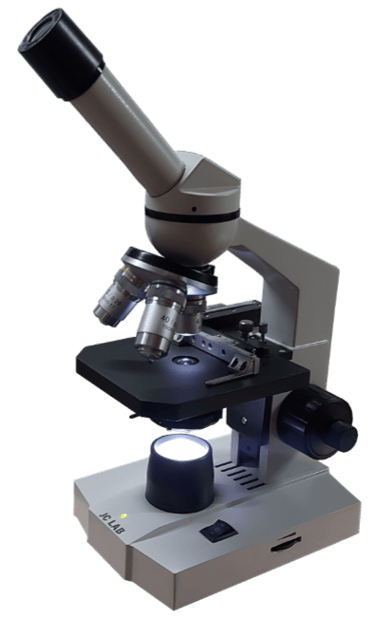

Monocular Microscope LED (junior)

Product Code : BIMC-01NS

For improved academic microscopy, JC LAB's BIMC-01NP series offer a unique ergonomic shape as well as superior optics than the standard DIN objectives. Available in different versions, including binocular, the BIMC-01NP series offer a wide range at an affordable budget.

Features:

• Eyepiece WF10x

• Achromatic objective 4x, 10x, 40x

• Triple nosepiece

• Attachable Mechanical Stag 110X120mm / 60X30mm

• Abbe NA 1.2 with Iris Diaphragm, Spiral Adjustment for Condenser

• Coaxial coarse and fine adjustment (20mm)

• LED illumination with intensity adjustment

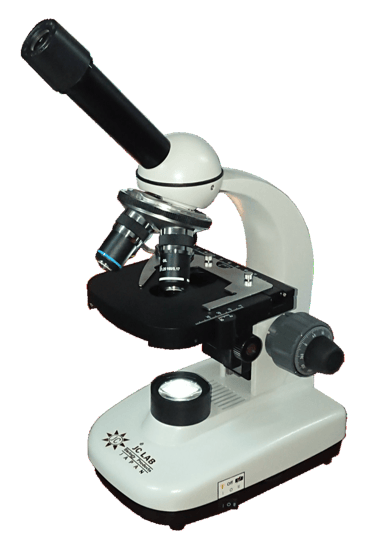

Advance LED Monocular Microscope

Product Code : BIMC-12A

The BIMC-12A is an economical microscope with all basic features it can be widely used in the field of physical science of elementary and high school students.

Features:

• Eyepiece WF10x & WF16x

• PL Achromatic objective 4x, 10x, 40x, 100x

• Quadruple nosepiece

• Build-in double layers mechanical stage 142 x 134mm

• Spiral mounted 1.25NA condenser with iris diaphragm and filter holder

• Focusing Coaxial coarse (22mm) & fine adjustment (0.0002mm)

• Rechargeable LED illumination with intensity adjustment

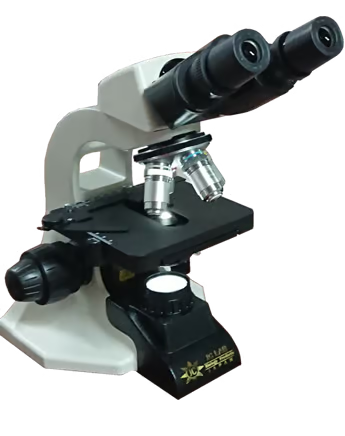

LED Binocular Microscope

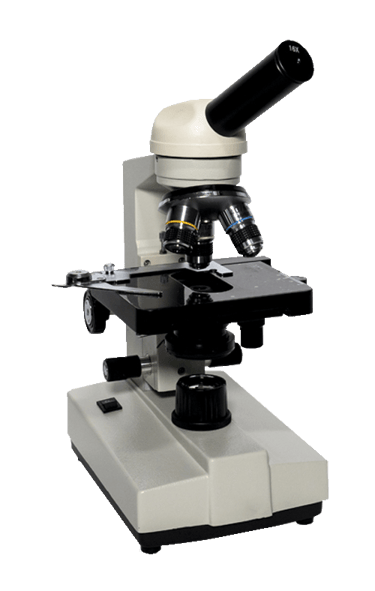

Junior LED Monocular Microscope

Product Code : BIMC-01A-A

BIMC-01A-A is an entry-level microscope that will last for many years

Features:

• Eyepiece WF10x & WF16x

• Achromatic objective 4x, 10x, 40x

• Triple nosepiece

• Build-in double layers mechanical stage 140 x 140mm

• N.A. 1.25 condenser with iris diaphragm

• Separated Coarse and Fine focusing adjustment

• Working Distance 2-195mm

• Illuminator LED (Cold Light) (Rechargable)

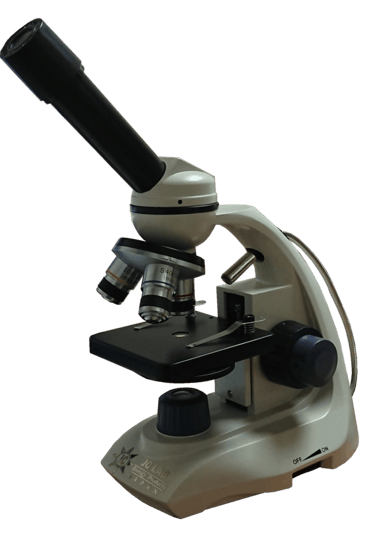

Duo Microscope, upper and lower LED (junior)

Product Code : BIMC-01SA

Features:

• Eyepiece WF10x

• Achromatic objective 4x, 10x, 40x

• Triple nosepiece

• Plain Stage with Slide Clips 95×95mm

• NA 0.65 with Turntable Diaphragm

• Coaxial coarse and fine adjustment (20mm)

• Up and down LED illumination, brightness is adjustable, and it can be equipped with 3 sections of AA batteries.

The BIMC-01SA Duo Microscope is our most popular microscope in the JC Lab series! Designed with two light sources, this microscope can magnify both slides and solid objects. View slides, coins, plants, stamps, insects, jewelry, and more! No longer do you need one basic biological microscope to look at specimens on a slide (light shines up from under the slide and through the tissue) and a traditional stereo or dissecting microscope to view solid objects (light shines down onto the specimen to be observed). Instead, equipped with dual lighting, the Duo Scope allows for both applications!

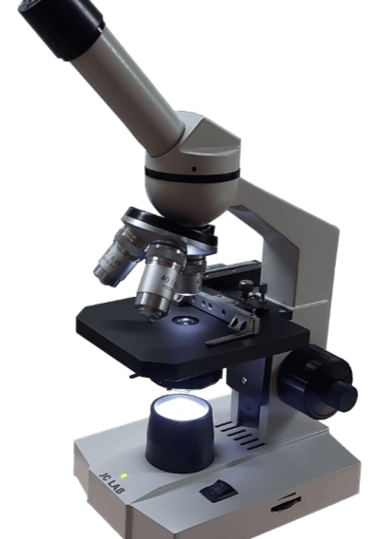

Monocular Microscope LED (junior)

Product Code : BIMC-01NS

For improved academic microscopy, JC LAB's BIMC-01NP series offer a unique ergonomic shape as well as superior optics than the standard DIN objectives. Available in different versions, including binocular, the BIMC-01NP series offer a wide range at an affordable budget.

Features:

• Eyepiece WF10x

• Achromatic objective 4x, 10x, 40x

• Triple nosepiece

• Attachable Mechanical Stag 110X120mm / 60X30mm

• Abbe NA 1.2 with Iris Diaphragm, Spiral Adjustment for Condenser

• Coaxial coarse and fine adjustment (20mm)

• LED illumination with intensity adjustment

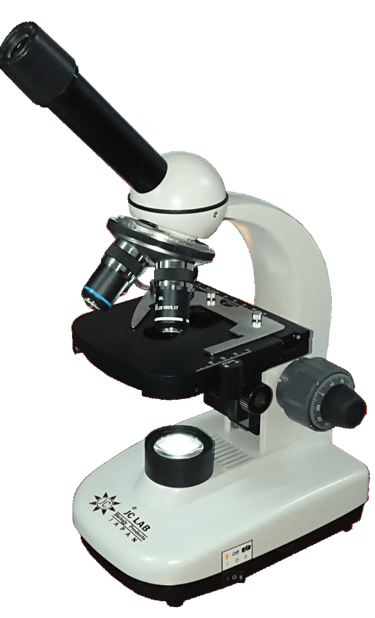

Advance LED Monocular Microscope

Product Code : BIMC-12A

The BIMC-12A is an economical microscope with all basic features it can be widely used in the field of physical science of elementary and high school students.

Features:

• Eyepiece WF10x & WF16x

• PL Achromatic objective 4x, 10x, 40x, 100x

• Quadruple nosepiece

• Build-in double layers mechanical stage 142 x 134mm

• Spiral mounted 1.25NA condenser with iris diaphragm and filter holder

• Focusing Coaxial coarse (22mm) & fine adjustment (0.0002mm)

• Rechargeable LED illumination with intensity adjustment
